DESCRIPTION:

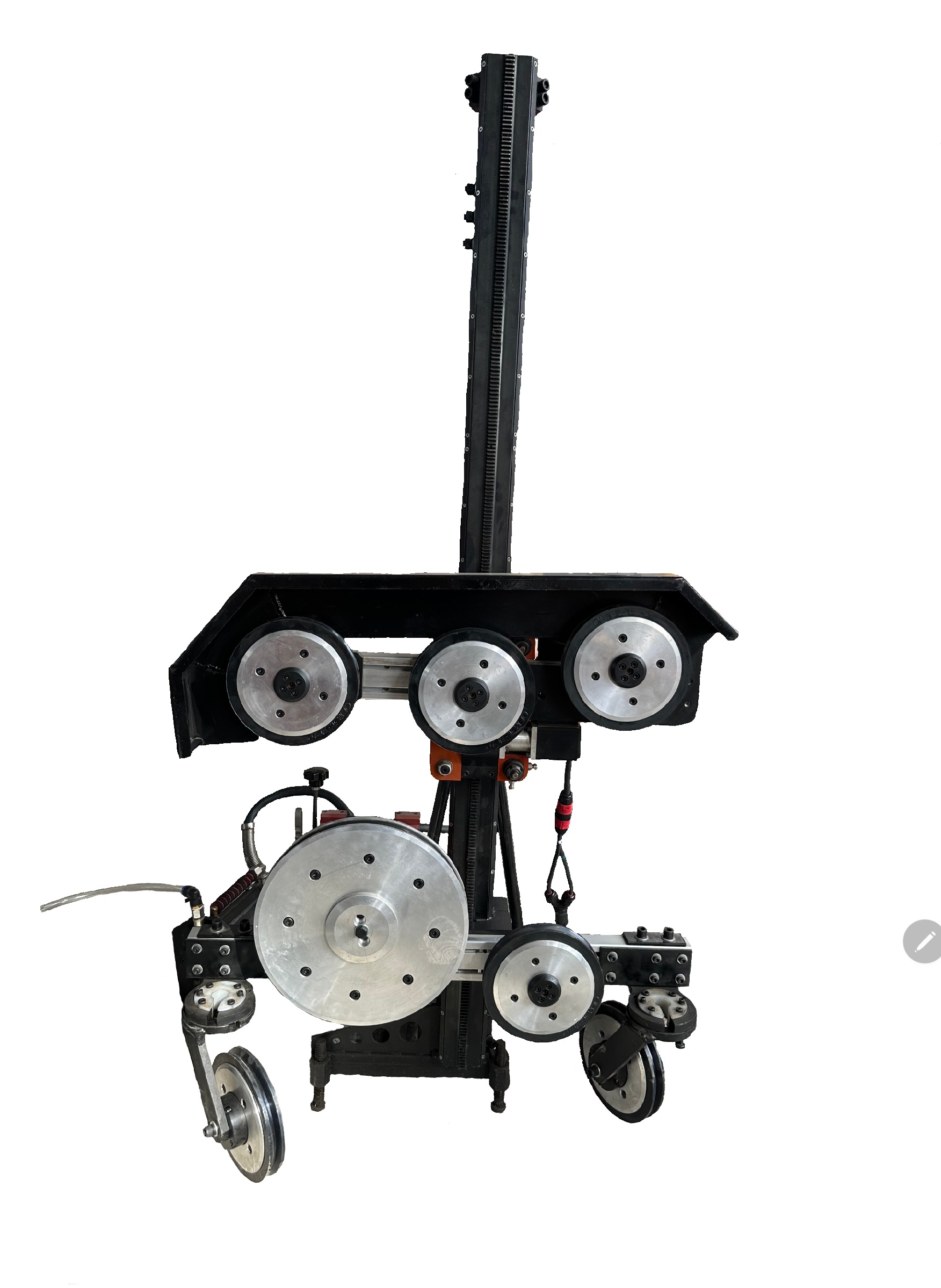

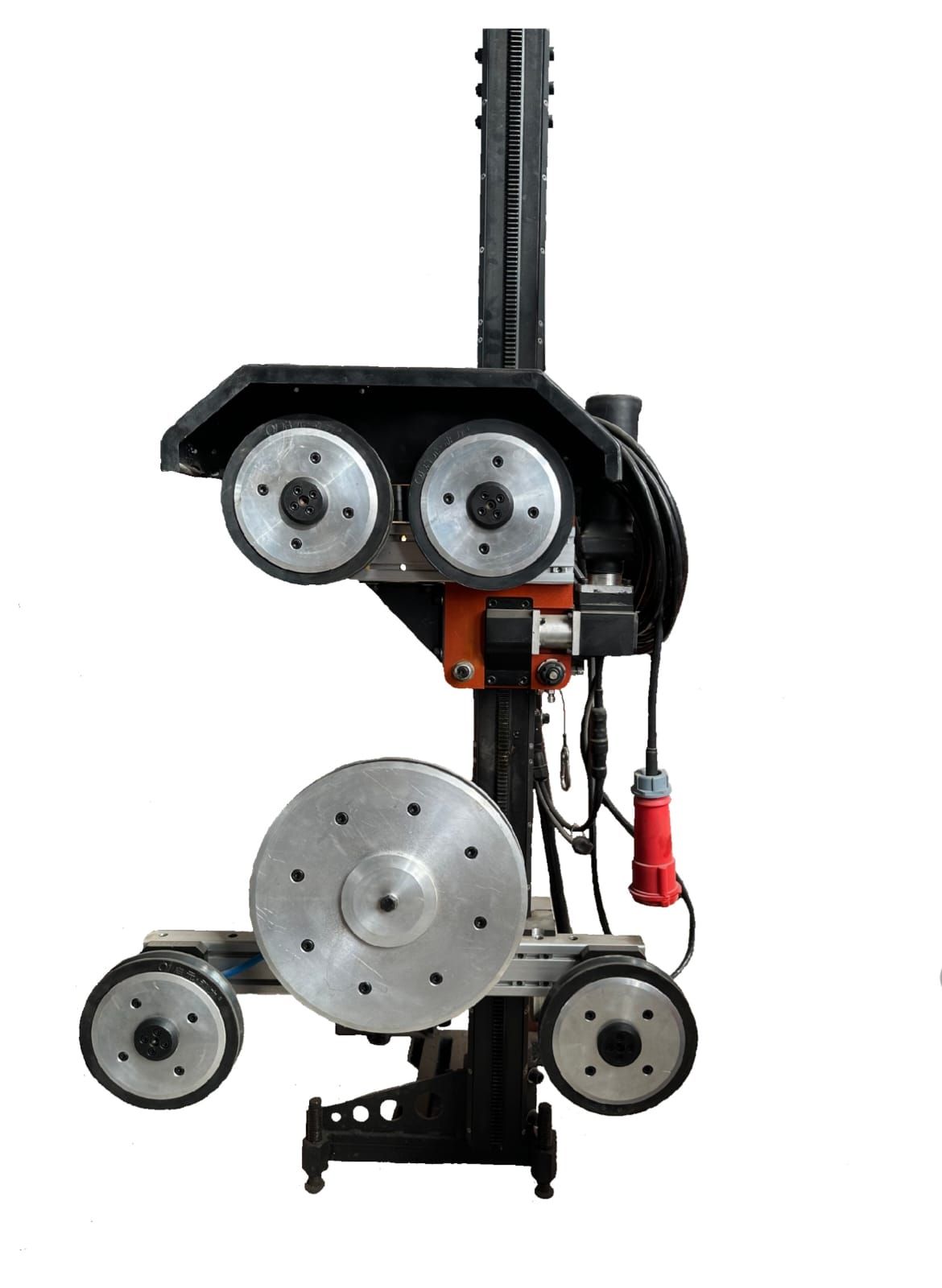

High frequency Rope Saw for 10.5-11.5mm rope for cutting brick, concrete, reinforced concrete, cast iron
Leave a request and we will call you back in the near future, orient you at the current price, make a personal commercial offer, agree on the cost and method of delivery, answer all your questions
TECHNICAL DATA:
| Power | 25 / 20 KW | Power source | 400 V |
| Frame and motor weight | 145 KG | Cooling method | water |
| Motor weight | 30 KG | Speed | 0 to 25 m/s |
| Control unit weight | 35 KG | Wiring requirements |
5 sq. mm, 3ph, 5 wires |
| Dismantling method | quick-release | Drive wheel diameter | 360 mm |
| Overall dimensions | 1500×900 mm | Idler pulley diameter | 210 mm |
| Control panel | wireless | Rotation control | both directions |
| Motor | high frequency | Movement by one person |
possible |
| Maximum cable loop |
50 m | Cable length | min 8–10 m max 20–30 m |
| Warranty | 12 months | Extended Warranty | yes |
DESCRIPTION:
High frequency Rope Saw for 10.5-11.5mm rope for cutting brick, concrete, reinforced concrete, cast iron
FEATURES:

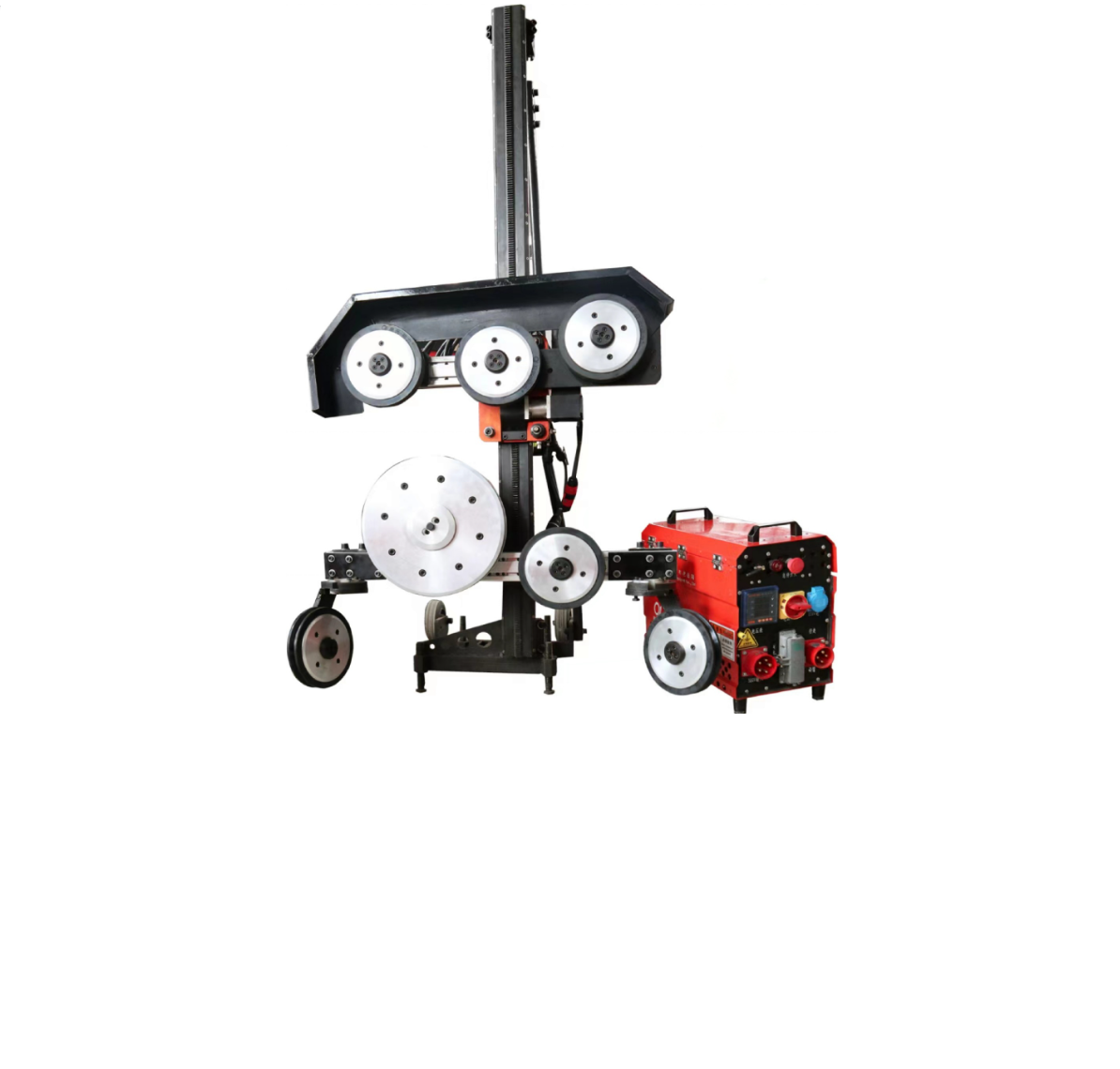

FC WS 25/20 FASTCUT rope saws are produced in two versions with a capacity of 25 and 20 KW, have a compact size, this allows you to use the saw in hard-to-reach places, and a reliable powerful high-frequency motor manufactured in Japan guarantees the performance of complex work with a long rope loop up to 30 meters
PRICE:
25 kW 20 kW
AED—126.966.00 AED—113.451.00
Made to order, AED—108.828.00 Made to order, AED—97.244.00
