Wall cutting disc saw for discs of up to 1,600 mm, designed to saw bricks, concrete, reinforced concrete, cast iron.
Tool bore: 60 mm
Leave a request and we will call you back in the near future, orient you at the current price, make a personal commercial offer, agree on the cost and method of delivery, answer all your questions
TECHNICAL DATA:
| Power | 22 KW | Power source | 400 V |
| Frame and motor weight | 350 KG | Cooling method | air |
| Motor weight | 158 KG | Speed | 25 m/s |
| Control unit weight | 10 KG | Wiring requirements |
5 sq. mm, 3ph, 5 wires |
| Dismantling method | none | Drive wheel diameter | 500 mm |
| Overall dimensions | 2100×800 mm | Idler pulley diameter | 210 mm |

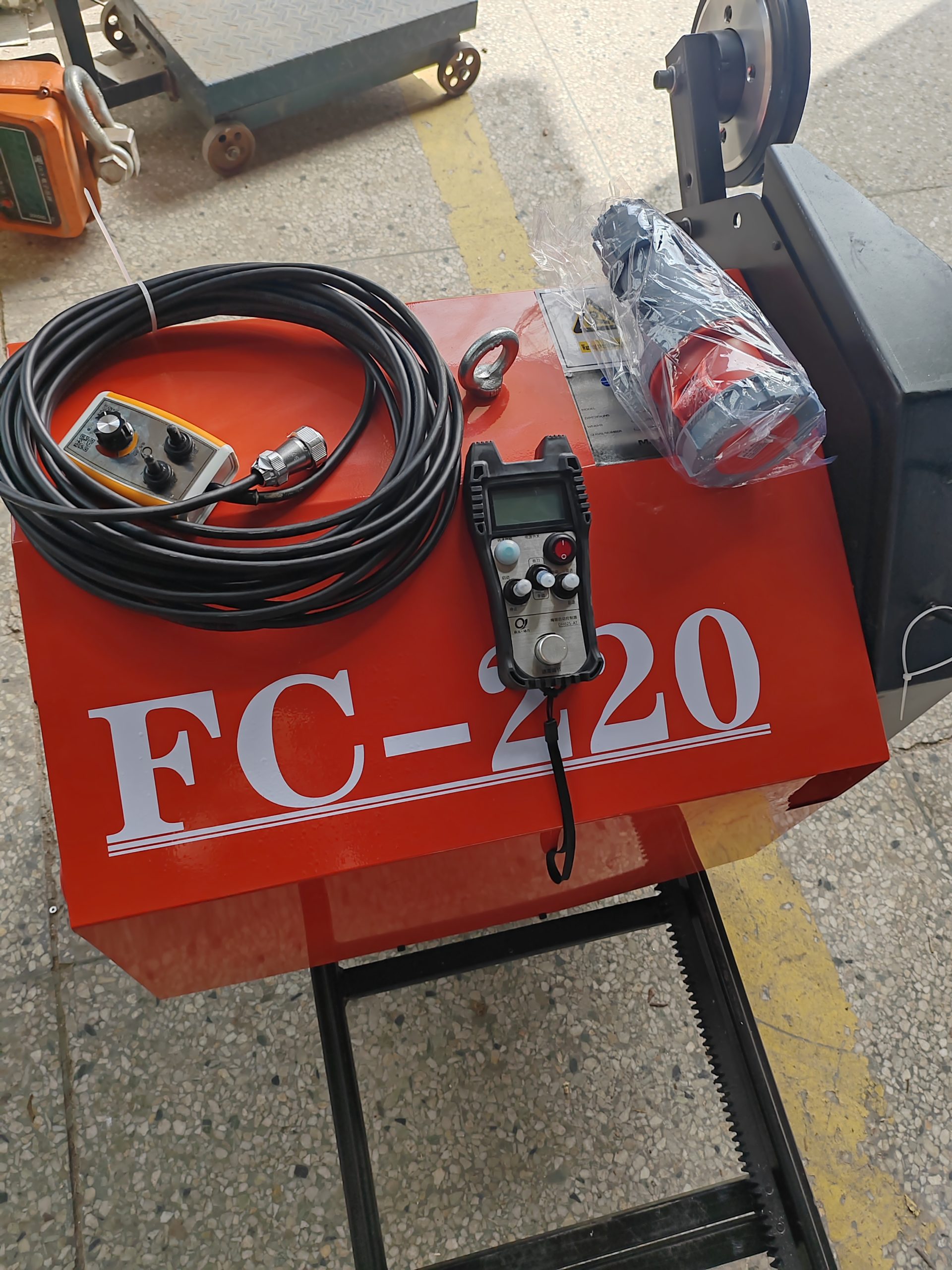

| Control panel | wire and wireless |
Rotation control | both directions |
| Wire drum capacity | 5 m | Movement by one person |
возможно |
| Maximum cable loop |
50 m | Minimum cable loop |
5 m |
| Warranty | 12 months | Extended Warranty | yes |
DESCRIPTION:
10.5–11.5 mm cable saw designed to saw bricks, concrete, reinforced concrete, cast iron
FEATURES:
The FC WS TD220 FASTCUT wire saw is the easiest solution to start using the unique cable cutting capabilities in your business, the low cost and simple design of the saw will allow you to quickly master this type of work
PRICE:
22 KW WITH SMOOTH START 22 KW, NO SMOOTH START
AED—32.375 AED—24.002
Made to order —27,750.00 Made to order —20,576.00
