Description

Wall Saw HWS-800TM

Cutting depths up to 730 mm.

Product / User Benefits

• Popular, well-tried and outstanding reliability and cutting accuracy
• Easy transport and simple installation thanks to well-honed design.
• Different blade diameters can be used, max. 1,600 mm.
• Super power 32 kW output. but it weighs only 118 kg.

Hydraulic power unit  OK-800TM 3x400V 60Hz/50Hz

Power source      Hydraulic

Blade diameter – range    600 – 1600 mm

Max. cutting depth    730 mm

Drive weight     118 kg

Oil flow rate – range  40 – 100 l/min

Saw head ok-800TM

Power source:       Hydraulic

Max. cutting depth    730 mm

Max.saw blade          1600 mm

Weight             39 kg

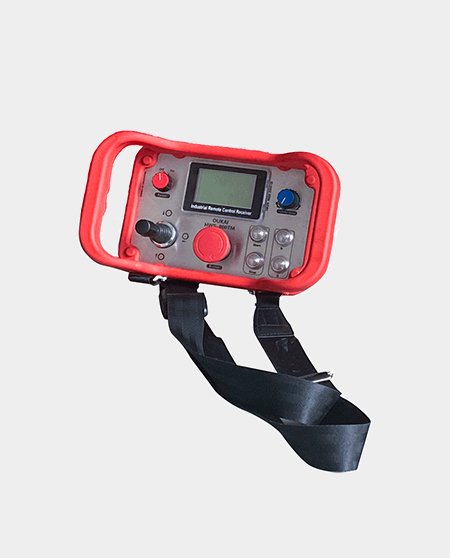

Remote control(wireless)

Control voltage      24 V(DC)

Weight     2 kg
