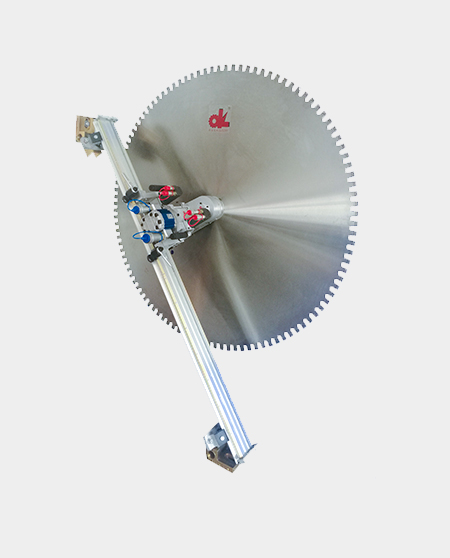

hydraulic Wall saw, also called hydraulic track sawing, is typically used to cut dimensionally precise door, window, and ductile vent openings in many types of materials.
Leave a request and we will call you back in the near future, orient you at the current price, make a personal commercial offer, agree on the cost and method of delivery, answer all your questions
It is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other building materials, up to 710 mm thickness. It can be used for all kinds of openings and sawing including stair, bevel and flush cutting.
Technical data
| OK-700TM Power pack | |
| Max. output power | 30kW |
| Electric motor | Water-cooled |
| Rated voltage(Wide voltage & Frequency) | 370V-480V 50HZ/60HZ |
| IP protection code | IP65 |
| Pressure stages | 3 |
| Max.operating pressure | 210bar |
| Oil flow rate | 40-100l/min. |
| Dimensions(L*B*H) | 500mm*520mm*1100mm |
| Weight | 118kg |
| OK-700TM saw head | |
| Saw blade diameter range | 800-1600mm |
| Max.Cutting depth | 710mm |
| Max.oil flow rate | 100l/min |
| Max.operating pressure | 210bar |
| Gearing | Gear |
| Rotation speed(with 700TM unit) | 600/850/1400Rpm |
| Dimensions(L*B*H) | 400mm*420mm*400mm |
| Weight | 37kg |
