Description

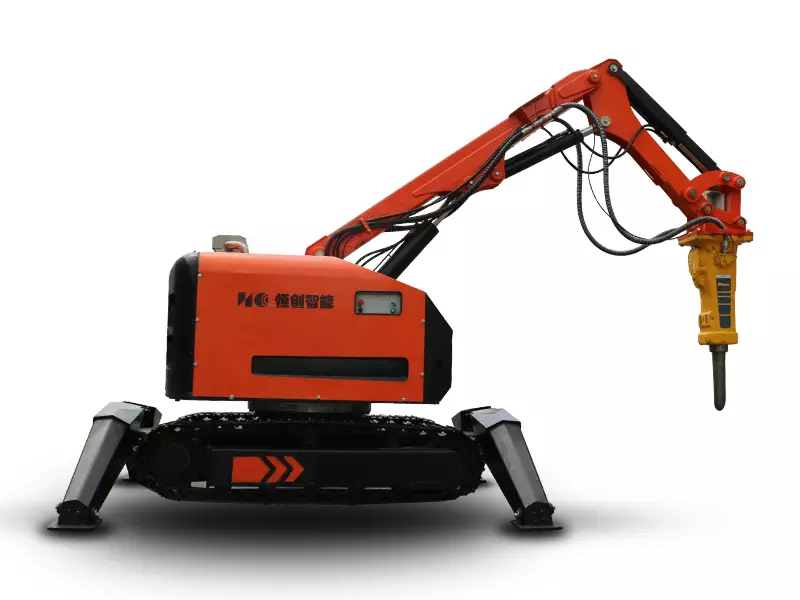

HCR500D Demolition Robot

The HCR500D is a multipurpose demolition robot designed for high-risk and complex operations. It integrates advanced electro-hydraulic control technology and robust chassis to deliver powerful demolition capacity.

The demolition robot is a powerful, versatile solution for the most demanding demolition and industrial applications in hazardous environments. With rapid configuration of multiple tools, it boosts productivity and safety with its all-terrain capability, precise control, and rugged design.

Item No :
HCR500D
Weight :
6000kg
Specifications :

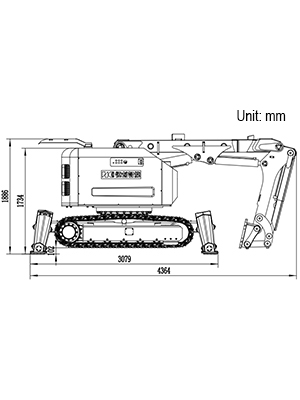

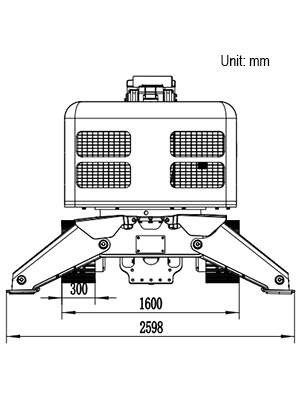

4748mm*1600mm*2012mm
Power :
45kw
Transport Packaging :
Wooden Case
Warranty :
1 Year

The HCR500D Multipurpose Demolition Robot is an advanced high-tech equipment used for delicate operations in high-risk environments. Using a crawler chassis as the carrier, it organically integrates a load feedback electro-hydraulic proportional system, a CAN bus-based digital two-way wireless remote control system, and a multi-parameter sensing system. It can flexibly carry out all-round crushing and demolition operations in dangerous areas.

Through quick coupler, the robot can quickly configure different operating tools such as hydraulic shears, hydraulic tampers, hydraulic drills, and buckets to complete shearing, tamping, drilling, pile driving, excavation, and earthmoving. It has the advantages of strong adaptability, wide operation range, flexible and convenient operation, and safe and reliable work.

Key Features:

Remote control: Operated remotely up to 150m via radio transmitter.
All-terrain: Crawler chassis provides all-terrain capability.
Tool flexibility: Accommodates multiple tools for various applications
Precise control: Load-sensing system enables precise tool control
Rugged design: Reinforced chassis and components withstand extreme forces.

Applications:

Building demolition: Ideal for demolition of concrete structures in tight spaces.
Rotary kiln repair: Effective in breaking clinker, bricks and patching kiln shells.
Mining: Suitable for tunneling, cave-ins, and boulder breaking underground.
Metallurgy: Excellent in ladle/furnace demolition and slag removal in steel plants.
Nuclear industry: Reliable in decontamination, waste handling and dismantling of nuclear facilities.

Performance
Machine weight	6000kg
Transport speed	0km/h-3.6km/h
Slewing speed	6.8rpm
Climbing inclination, max.	30°
Track width	400mm
Hydraulic system
Pump type	Load-sensing Pressure Limiting Axial Piston Variable Pump
Pump flow	0~135L/min
System pressure, max	25Mpa
System pressure	20Mpa
Hydraulic oil tank capacity	180L
Dynamical System
Drive Type/Model	Motor Drive
Power/Speed	45kw/2200rpm
Torque, max	290N·m
Current/Voltage	85.4A, 380/660V
Starting device	Y-△Start/Direct Start
Control system
Control type	Portable remote control
Control mode	Radio
Range	Up to 150m
Communication	CAN bus-based Digital Wireless Two-way Communication

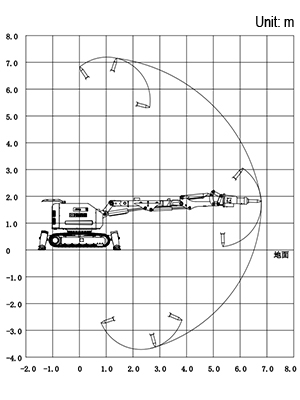

Workspace Level
Working height, max	7246mm
Working length, max	6733mm
Working depth, max	3618mm
