Description

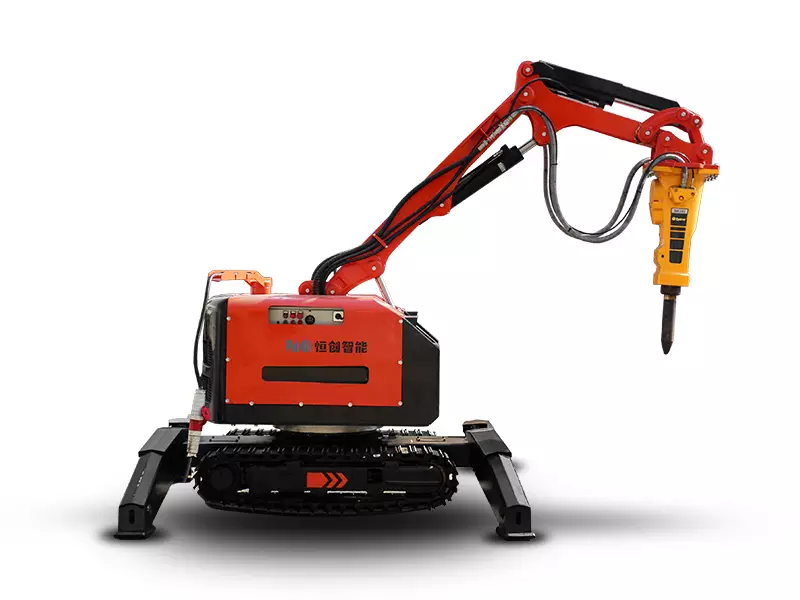

HCR200D Demolition Robot

Hitech HCR200D multi-functional engineering robot replaces humans in working in hazardous areas with high temperatures, high dust, and easy collapse. The HCR200D flexibly performs multifunctional operations such as crushing, digging, grasping, and handling in all directions through remote control. Our customers use HCR200D in building demolition, tunnel excavation, mine secondary crushing, metallurgical furnace slag cleaning, nuclear industry demolition and other fields. After verification, HCR200D has received satisfactory feedback, with significant results.

Item No :
HCR200D
Weight :
2600kg
Specifications :

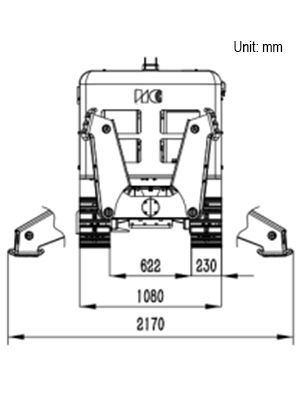

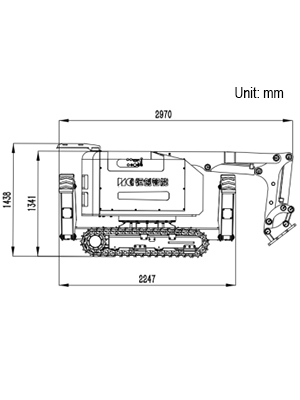

3000mm*1080mm*1450mm
Power :
30kW
Transport Packaging :
Wooden Case
Warranty :
1 Year
Hitech HCR200D multi-functional engineering robot replaces humans in working in hazardous areas with high temperatures, high dust, and easy collapse. The HCR200D flexibly performs multifunctional operations such as crushing, digging, grasping, and handling in all directions through remote control. Our customers use HCR200D in building demolition, tunnel excavation, mine secondary crushing, metallurgical furnace slag cleaning, nuclear industry demolition and other fields. After verification, HCR200D has received satisfactory feedback, with significant results.

Key Features:
- Travel speed of 2.2km/h-4.4km/h
- Output flow of hydraulic pump 0~90L/min
- Large capacity of hydraulic oil tank 85L
- 30kW high-power system
- Greater and broader scope of work
Main Applications:
1. Building demolition: The HCR200D is suitable for various building demolition operations like floor-by-floor demolition, wall breaking and material handling.
2. Underground engineering: The HCR200D is capable of crushing ore bodies, tunnel excavation, secondary crushing in mines and tunnels.
3. Metallurgical industry: The robot is ideal for slag cleaning of metallurgical furnaces and other maintenance operations.
4. Nuclear industry: The HCR200D provides remote solutions for nuclear decommissioning in hazardous environments.
The HCR200D Demolition Robot is a powerful and advanced solution for hazardous applications in building demolition, underground engineering, industrial furnaces and nuclear sites. With significant advantages in mobility, hydraulics, power and range, the HCR200D helps improve productivity, efficiency and safety for heavy-duty operations in dangerous work environments. The successful applications of HCR200D in various fields demonstrate its strong capabilities and potentials. (edited)

Performance
Machine weight	2600kg
Transport speed	2.2km/h, 4.4km/h
Slewing speed	0-8rpm
Climbing inclination, max.	30°
Track width	230mm
Hydraulic System
Pump type	Load-sensing Pressure Limiting Axial Piston Variable Pump
Pump flow	0~90L/min
System pressure	18MPa
Hydraulic oil tank capacity	85L
Dynamical System
Drive Type/Model	Motor Drive/YX3-200L
Power/Speed	30kW/1470rpm
Torque, max	120N·m
Starting device	Direct start
Control system
Control type	Portable remote control
Control mode	Radio
Communication	CAN bus-based Digital Wireless Two-way Communication

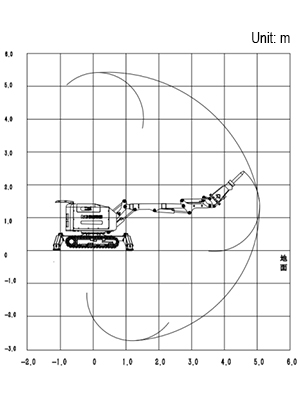

Workspace Level
Working height, max	5450mm
Working depth, max	2600mm
Working radius, max	5100mm
