Description

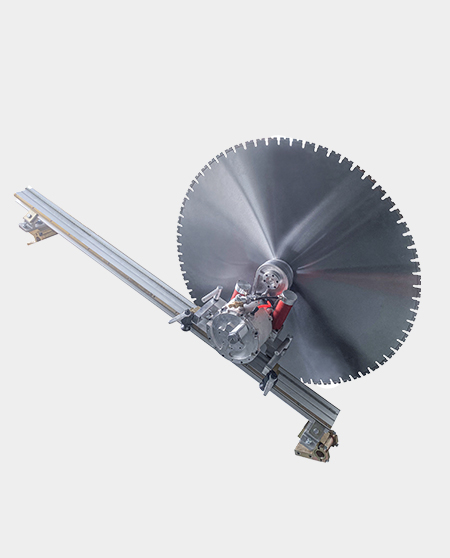

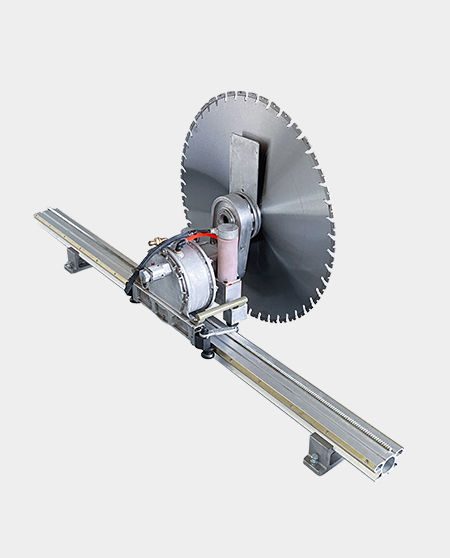

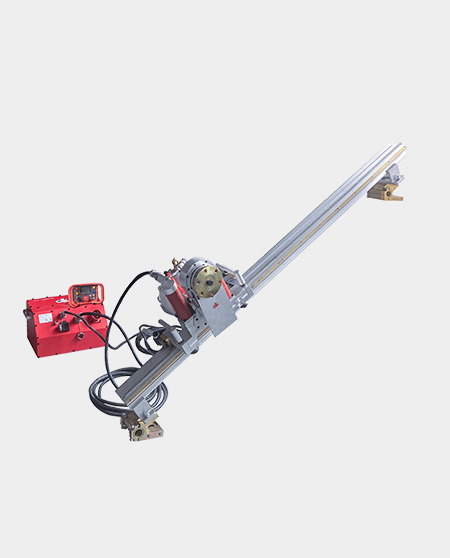

Electric concrete wall saw

HF-103DM Electric wall saw for tough cutting jobs with wireless control

Saw Blade

1. Max.cutting depth : 510mm
2. Max.saw blade : φ1200mm
3. Saw blade fixing(flush cuts) : 6 countersunk head screws,110mm graduated circle.

Electric motor

1. Water-cooled
2. High-frequency motor
3. Output : 16kW

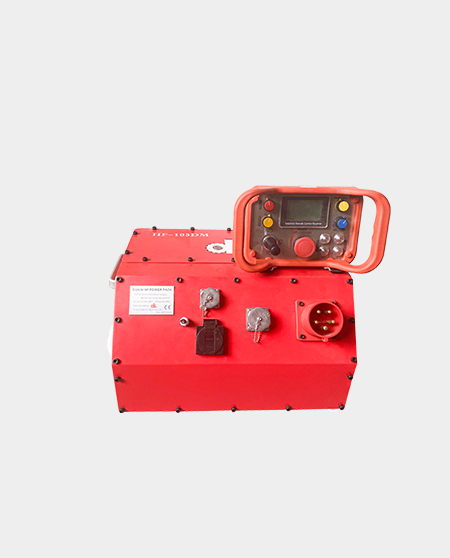

Control unit

1. Voltage : three-phase/380V~480V (singe-phase/220V~240V can be customized)
2. Frequency : 50Hz/60Hz
3. Weight : 19kg
4. Wireless control : 2kg

Weight

1. Wall saw 105DM incl.feed electric motors : 27kg
2. Eletric main motor(16KW) : 18kg

Cutting

There are mainly two ways for choice

1. Automatic cutting without manual intervention
2. Manual cutting
